Wellpoint Installation Pretoria

Wellpoint Installation Pretoria covers shallow groundwater systems for properties across the metro: the wellpoint itself, the pump that lifts the water, the controller that switches it, and the irrigation, storage or filtration it feeds.

A wellpoint is a small-diameter point jetted into water-bearing sand, usually somewhere between 6 and 12 metres down, with a surface-mounted suction pump above it. It is the cheapest practical way to get off the municipal meter for garden water, and it goes in inside a morning rather than over a week.

What a Wellpoint Installation Involves

Site and suitability assessment

The installer looks at what is likely to be under the property, where the pump can sit relative to power and the irrigation system, and whether there is jetting access. Ground with a high clay or stone content can stop the process before water is reached, which is why a no-water fee is quoted up front.

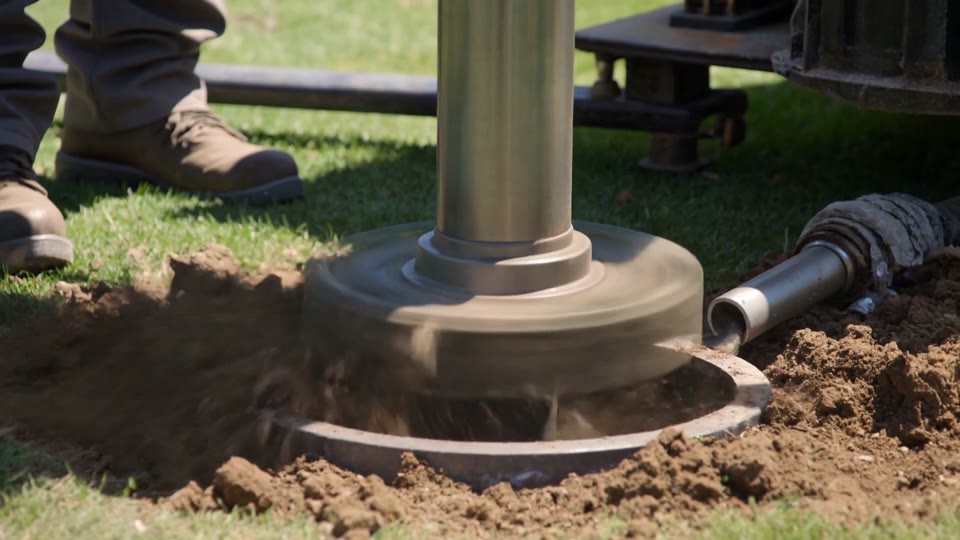

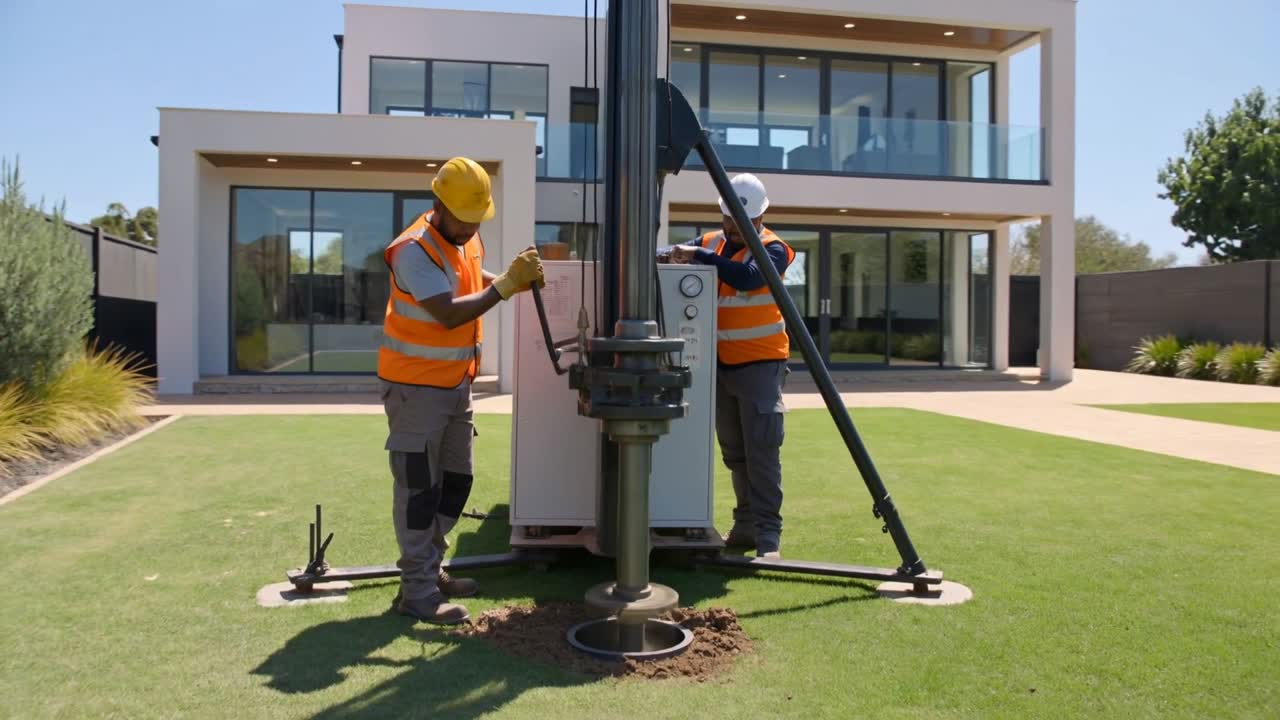

Jetting the point

High-pressure water is pushed down through galvanised steel pipes to open a hole into the sand. Once the water-bearing layer is reached, an LDPE riser with a filter screen is fed inside and the steel pipe is withdrawn, leaving the point in the formation.

Pump, controller and connection

A self-priming jet pump, typically 0.75kW to 1.5kW on domestic sites, is mounted at the surface with a non-return valve. From there the system is either left on a garden outlet or wired into a pump controller, a pressure tank, an irrigation manifold or a storage tank.

Testing and handover

Flow is measured, the pump is set and the system is run long enough to clear the fines that come through on a new point. Water quality is worth testing at this stage, before anything is plumbed into filtration or irrigation.

Wellpoint vs Borehole

In Pretoria a wellpoint is the exception rather than the default. It works where deep sandy, alluvial or heavily weathered material holds water within suction range, and it fails where the profile turns to shale, quartzite or hard rock a few metres down, which is a great deal of the city. That is the single question a site assessment exists to settle, and it is why the no-water fee matters more here than at the coast.

Price Guide

Indicative Gauteng ranges, compiled from published installer pricing, to give you a sense of where a job lands before anyone visits:

Pretoria Groundwater Conditions

Pretoria is harder wellpoint ground than the coastal cities, and it is worth saying so plainly. The city sits on the Transvaal Supergroup: quartzite ridges such as the Magaliesberg, Daspoort, Klapperkop and the Bronberg, with broad valleys of Timeball Hill and Silverton shale between them. Shale weathers to clay, and clay does not jet. The productive exceptions are the alluvial and deeply weathered material along the watercourses — the Apies River, Walkerspruit, Moreleta Spruit, Hartbeesspruit, Six Mile Spruit and the Hennops — and the sandy weathered granite north of the Magaliesberg through Montana and Pretoria North.

The south-west of the metro is a separate case. Centurion and the suburbs around it sit on Malmani dolomite, and the City of Tshwane prohibits drilling in the dolomite-underlain suburbs unless a suitably registered professional certifies the site as safe. That list includes Lyttelton, Irene, Eldoraigne, Wierdapark, Monument Park, Clubview, Doornkloof, Highveld, Valhalla and several others. It is a sinkhole-risk rule, not a paperwork formality, and it applies before any equipment reaches the property.

Seasonality matters as much as geology, and it runs the opposite way to the Cape. Pretoria's rain falls in summer, the table recovers from October through March, and it draws down through the dry winter, bottoming out around September. A point set well into the saturated layer rides that swing; a marginal one goes quiet at the end of winter and comes back with the first real rains.

What the Water Is Good For

• Garden and lawn irrigation. The main use, and the one that makes the numbers work, since outdoor watering is a large share of a typical household's consumption.
• Automated irrigation. With a controller and adequate flow, a wellpoint can run zoned sprinklers and drip lines without touching the municipal supply.
• Pool top-ups. Common, but depends on water quality: iron-bearing water will stain plaster and fittings.
• Storage tanks. Filling a buffer tank slowly and drawing from it evens out a modest yield.
• Washing and outdoor cleaning. Vehicles, paving and equipment.

Drinking, cooking and washing are a different matter. Shallow groundwater sits close to surface contamination sources and needs laboratory testing before anyone treats it as potable. Under the City's Water By-law a groundwater system also may not be interconnected with the municipal water installation.

Registration and Water Rules

Two separate rules apply. Locally, the City of Tshwane expects a wellpoint or borehole to be registered with the metro once it is installed, and that obligation sits with the property owner rather than the installer. Nationally, the Department of Water and Sanitation confirmed in 2026 that most households drawing groundwater for reasonable domestic use do not have to register under the national water-use process, though commercial and larger abstractors still do. The rule that stops jobs outright is dolomite: in Tshwane's listed dolomite suburbs, drilling is prohibited without certification from a registered professional. Requirements change, so confirm the current position with the metro before you commit.

What to Check Before Appointing Anyone

• What is charged if no usable water is struck, and how is that decided?
• Is the pump included, and at what size and make?
• Who does the electrical connection, and is it in the price?
• Is the measured yield reported to you in litres per hour?
• Does the quote cover connecting to the existing irrigation system?
• What guarantee applies to the point, the pump and the workmanship?
• Will they handle the City application and registration paperwork?

Areas Covered

Quotes are arranged across Pretoria East through Garsfontein, Faerie Glen, Moreleta Park, Wapadrand, Equestria, Silver Lakes and Mooikloof, the older eastern suburbs including Waterkloof, Brooklyn, Groenkloof, Lynnwood, Menlo Park, Menlyn, Hazelwood and Newlands, the south-east through Erasmuskloof, Elardus Park, Wingate Park and Olympus, Centurion including Lyttelton, Irene, Eldoraigne, Wierdapark and Rooihuiskraal, and north of the Magaliesberg in Montana.
